Plane LMF37 Induction Proximity Sensor , Adjustable Proximity Switch Response

Name: Plane LMF37 Induction Proximity Sensor Adjustable Proximity Switch Response
Brand: Winston/OEM
Price: 1 USD

China Plane LMF37 Induction Proximity Sensor , Adjustable Proximity Switch Response wholesale

Brand Name : Winston/OEM

Model Number : LMF37

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Standard detected object : A3 iron

OEM : YES

ODM : YES

Aviation connector : YES

Repeated precision : 0.2

Output state : NO/NC/NO+NC

Protection degree : IP 67

Condition : Original new

Insulation resistance : >=50MΩ

Working environment temperature : -25℃—+70℃

DC/AC : 500Hz/10Hz

Shell material : ABS Resin

Contact Now

Plane LMF37 Induction Proximity Sensor , Adjustable Proximity Switch Response

Technique parameter

DETECTION DISTANCE 15mm
Flush	DC 10-30V	NPN	NO	LMF37-3015NA
			NC	LMF37-3015NB
			NO+NC	LMF37-3015NC
		PNP	NO	LMF37-3015PA
			NC	LMF37-3015PB
			NO+NC	LMF37-3015PC
		two wire system	NO	LMF37-3015LA
			NC	LMF37-3015LB
	AC 90-250V	SCR Control-lable silicon	NO	LMF37-2015A
			NC	LMF37-2015B
			NO+NC	LMF37-2015C
		Relay output
	DETECTION DISTANCE 20MM
Non-Flush	DC 10-30V	NPN	NO	LMF37-3020NA
			NC	LMF37-3020NB
			NO+NC	LMF37-3020NC
		PNP	NO	LMF37-3020PA
			NC	LMF37-3020PB
			NO+NC	LMF37-3020PC
		two wire system	NO	LMF37-3020LA
			NC	LMF37-3020B
	AC 90-250V	SCR Control-lable silicon	NO	LMF37-3020A
			NC	LMF37-3020B
			NO+NC	LMF37-3020C
		Relay output		LMF37-3020JC
Controloutput		DC		200mA
		SCR/ Relay		300mA/2A
Output voltagc dropDC/AC				NPN/PNP< 3V, Two wire< 3.9V, AC< 10V
Consumption current				DC< 15mA, AC< 10mA
Standard detected object				50501(A3 iron)
Repeated precision				0.2
DC/AC				200HZ/15HZ
Working environment temperature				-25~+70º C
Insulation resistance				50MΩ
Shell material				ABS Resin
Protection grade				IP67
Altemative model at home and abroad				HY-A20

Features:

1 . High precision of repeated location
2 . Diversified exterior structures
3 . High on-off frequency.
4 . Wide voltage range
5 . Dust proof, vibration proof, water proof and oil proof

6 . Compact volume

7 . Long service life
8 . Good performance of anti-interference.

Model explanation of proximity switch

LM 18 30 05 N A □ / L
—— —— - —— —— —— —— —— ——
1 2 3 4 5 6 7 8

Switch category	Output form
Lm: Inductance type Cm: Capacitance type Sm: Hall type Am: Safety Explosion-proof type Xm: Mimic Linear type Hm: Reed type Ru: Ultrasonic type	N: Three-wire Dc NpN Output P: Three-wire Dc PnP Output L: Two-wire Dc Output : Ac Two-wire Output J: Relay Contact Output Np: NpN+PnP Double Output
Outward appearance code	Output state
□: Cylinder type F□: Angular Colum Type And Plane Installation Type	A: (no) normally Open (no) B: (nc) Normally Close (nc) C: (no-nc) normally Open-Normally Close (no+nc) Mu: Mimic Voltage Mi: Mimic Current Mui: Voltage+Current
Working voltage	Subsidiart functions
30: 6-36VDC 310:5-24VDC 320:12-60VDC 330: 10-30VDC 340:10-55VDC 350:10-60VDC 360: 5-36VDC 20:90-250VAC 210:24-250VAC 220: 380VAC40:12-240VDC/24-240AC 50: Special voltage	T: with aviation connector Y: water proof,oil proof I: special requirement H: high temp resistance R: ring type
Detection distance	Long-distance
01: 1mm 05: 5mm 10: 10mm ......	L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.
Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1 . Stopper detection of grinding machine
2 . Gusrd of switch lead-wire
3 . Various location detection of machinery process center
4 . Arm location detection of robot
5 . Inspection of the exiating of milk inside the paper package
6 . Spacing detection

Dimension

Plane LMF37 Induction Proximity Sensor , Adjustable Proximity Switch Response

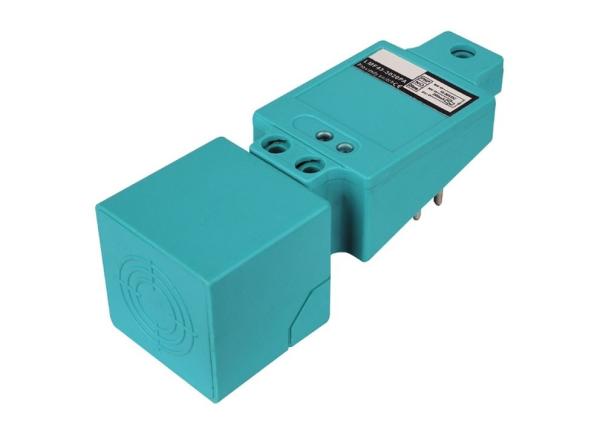

Product Picture

Q 1. what's the payment term?

A . We accept TT,30% deposit and 70% balance agaisnt copy of BL

Q 2. how's the delivery time ?

A . usually it will take about 15 days for production

Q 3. tell me the standard of package?

A. Export standard carton box

Q 4. Could you offer Form A or C/O ?

A . It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q 5. Would you accept to use our logo ?

A . If you have good quantity,it absolute no problem to do OEM.

Q 6. We want to know month capacity.

A . It depends on which model.For example for M12 type normal type, month capacity can reach near 20000pcs.

Q 7.Where is your market?

A . Our products are popular in Russia, Indonisia, Philippines,Italy, America, Brazil and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
